Product Features
8K Output
Support 8K Ultra-HD Output & Flexible Resolution
Master-Slave Redundant Backup
Master-slave backup enables automatic ms-level failover.
16-Device Wireless Screen Mirroring
Built-in Wi-6 AP supports simultaneous wireless mirroring for up to 16 devices.
Drag-and-Drop Scene Management
Support 50+ quick layouts, arbitrary window shapes , drag-and-drop, and synchronized or asynchronous preview
High-Performance Hardware Platform
Rockchip RK3588, 8GB DDR5, 64GB eMMC, Android 15, decodes 32×1080p streams with low power consumption.
Intelligent Playback Scheduling & Logging
Create a schedule and auto-playback, log time/content/duration for audit compliance.
Comprehensive Device Management
Configure parameters, lock screen layouts, monitor temperature, and screen color tests.
Dedicated Control Center for Live Events
Manage programs and cut-in scenes from a single console, monitor playback progress, and seamlessly resume interrupted content
Technical Parameters
| Parameter Name | PTB8800 |
| CPU |
Rockchip RK3588 octa-core processor (ARM architecture) |
| GPU | Mali-G610 MP4 |
| Storage | DDR: 8GB; eMMC: 64GB |
| Multimedia | Supports 8K video decoding and multi-channel 4K video decoding; supports multi-channel 4K video encoding |
| Hardware Specifications |

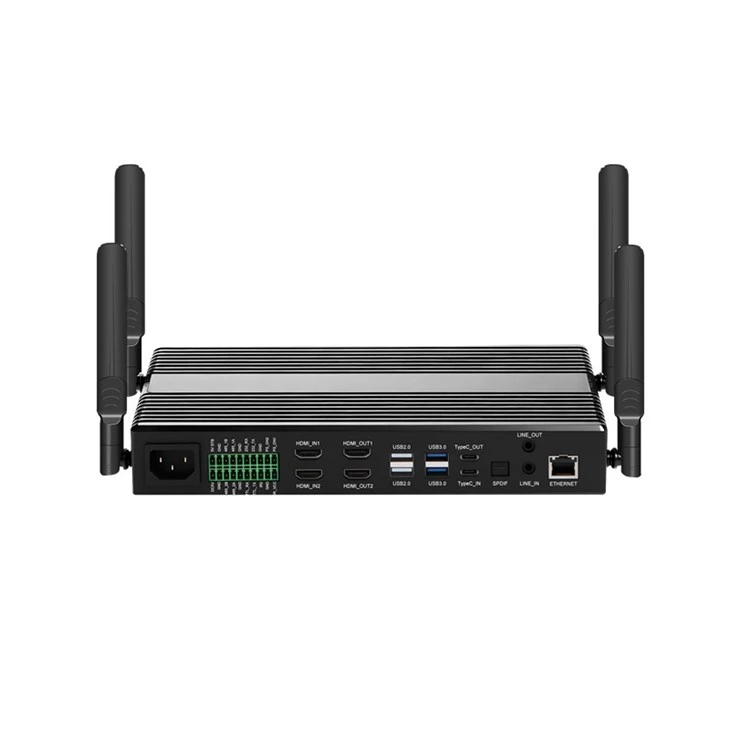

HDMI IN * 2, Type C IN*1,HDMI OUT* 2, Type C Out*1,Audio out * 3, Audio In1 * 2, USB connect *6 |
| Input Resolution | 4K |
| Output Resolution | Up to 8K |
| Wireless Transmission Distance | >30m |
| Screen Display | 16 |
| Number of Inputs/Connections | 16 |
| RS232 | 1 channel, Phoenix terminal, supports baud rates: 1500000, 115200, 19200 |
| RS485 |
2 channels, Phoenix terminal, supports baud rates: 1500000, 115200, 19200, 9600, 8N1, etc. |
| Power Supply | AC 100–240V |
